Powder metallurgy (PM) is a manufacturing process that produces metal parts by compacting metal powders and heating them to form solid shapes. This process is highly efficient, cost-effective, and ideal for producing parts with intricate geometries and superior mechanical properties. In this article, we’ll walk you through the key stages of the powder metallurgy process, highlighting how each step contributes to creating high-quality, durable components.

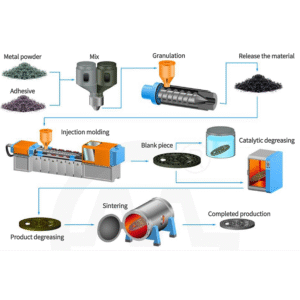

1. Powder Preparation
The first step in the powder metallurgy process involves selecting and preparing the metal powders. High-quality metal powders are essential for ensuring the final product has the desired mechanical properties. These powders can be made from various materials, such as iron, stainless steel, copper, and tungsten, depending on the application.
·Metal Powder Selection: The type of metal powder used is determined by the requirements of the final product. Common metals include ferrous and non-ferrous powders, which are chosen based on factors like strength, wear resistance, and corrosion resistance.
·Mixing and Granulation: The metal powders are then mixed with additives like lubricants or binders to enhance the flow and compaction properties. Granulation is performed to ensure a uniform distribution of the powder particles.
2. Mixing and Granulation
Once the metal powders are selected, they are blended with binders or lubricants to improve the flow and moldability of the material. Granulation helps create uniform-sized powder particles, which ensures consistent compaction during molding. This step is critical for achieving uniform density and performance in the final part.
·Binder Addition: An adhesive is mixed with the metal powder to hold the particles together during the initial stages of molding.
·Granulation: The powder mixture is processed into granules that are easier to handle and compact, ensuring consistency in the final product.
3. Injection Molding
The granulated metal powder is then fed into an injection molding machine, where it is heated and injected into a mold cavity under high pressure. This process creates a green compact, which is the shape of the part before it undergoes further processing.
·Mold Design: Molds are created based on the specific geometry of the part. The injection molding machine ensures that the powder mixture is evenly distributed and compacted into the desired shape.
·Blank Piece Formation: The product, in its initial form, is now ready for the next stage of processing. This “blank piece” retains the shape it will take after sintering.
4. Degreasing
The next step is degreasing, which involves removing the binder or adhesive used during the molding process. This is typically done through catalytic degreasing, which eliminates the organic materials without affecting the metal powder.
·Product Degreasing: The blank piece is heated to remove any residual binder material, leaving behind the compact metal structure.
·Catalytic Degreasing: This process uses a chemical reaction to efficiently break down the binder, making the part ready for sintering.
5. Sintering
Sintering is the critical step that involves heating the degreased blank piece in a furnace to a temperature below its melting point. During this phase, the metal particles fuse together, creating a solid part. The temperature and time in the furnace are carefully controlled to ensure the desired properties, such as density, strength, and hardness.
·Controlled Heating: The part is heated to the sintering temperature, where the metal particles begin to bond together at their contact points, causing the part to densify.
·Material Transformation: The material undergoes a structural change, forming a solid, strong part that retains its shape and has the mechanical properties required for its final application.
6. Completed Production
After sintering, the part undergoes cooling, and additional processes, such as surface finishing, may be applied. The result is a fully formed, durable, and high-precision metal part.
·Final Inspection: The completed part is inspected for quality, ensuring it meets all specified tolerances and requirements.
·Surface Finishing: Depending on the application, the part may undergo additional processes like coating, polishing, or heat treatment to enhance its surface quality or properties.
Applications of Powder Metallurgy
The versatility of powder metallurgy makes it an ideal manufacturing solution for a wide range of industries, including:
·Automotive: Parts such as gears, bearings, bushings, and engine components.
·Medical: Surgical tools, implants, and dental products.
·Consumer Electronics: Connectors, housings, and microcomponents for devices.
·Aerospace: High-performance parts for critical applications.
·Industrial Tools: Cutting tools, drill bits, and machine components.
Conclusion
Powder metallurgy is an efficient and cost-effective process for producing high-precision metal components with complex shapes and superior mechanical properties. The sintering process plays a vital role in transforming the metal powders into durable, functional parts that meet the demanding requirements of various industries. With its ability to produce strong, lightweight, and complex parts, powder metallurgy is an essential technology in modern manufacturing.At our company, we leverage the latest advancements in powder metallurgy to deliver top-quality products that meet the highest standards of performance and reliability.
